"Accuracy, Stability, and Scalability — All in One Flow Sensor"
MICROFILTER's Flow Sensor delivers optimal performance for any environment that demands accurate, reliable flow measurement.
Enhances product performance through precise flow control
Maintains stable flow even under pressure fluctuations
Enables easy integration across diverse systems
Expands application range with high-flow capability

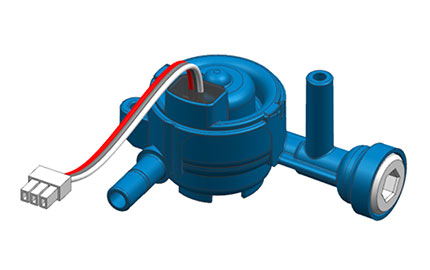

1. Standard Flow Sensor
: A standard model suitable for a wide range of equipment
2. Valve-Integrated Flow Sensor
: Enhances installation convenience and system integration
3. High-Flow Sensor for Water Purifiers
: Optimized for environments requiring high flow rates
| IMAGE | ||
|---|---|---|

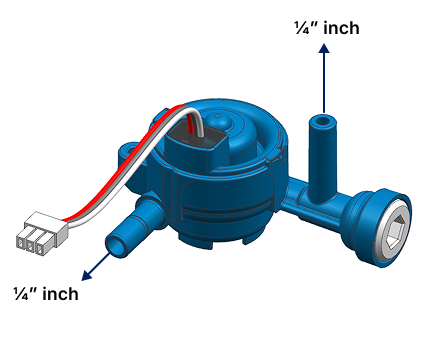

Standard FLOW SENSOR
|

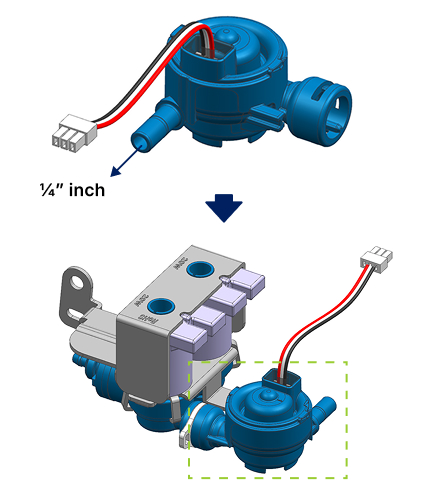

Valve-combined FLOW SENSOR
|

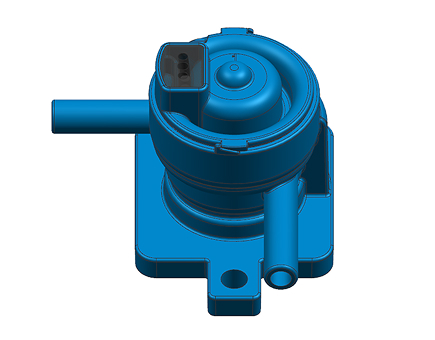

Water Purifier (High Flow) FLOW SENSOR
|
| PERFORMANCE SPEC | |||
|---|---|---|---|
| Type | ICE Only | DIS & ICE Combined | Water Purifier (High Flow)※ Development Required |
| Measurement Accuracy | 0.21 cc/pulse ±3% | 0.21 cc/pulse ±5% | 0.36 cc/pulse ±5% |
| Min. Flow Path Size | Ø 1.7mm | Ø 2mm | Ø 3.3mm |
| Outlet Flow Rate | - | ▲ | ▲▲ |
| Operating Pressure/Temp. | 1–8 kgf/cm² / 5–40 °C | ||
| Operating Voltage | DC 3.5 ~ 24V | ||
| Detection Method | Hall IC switch using a magnet | ||
| Certification | NSF 61 | ||

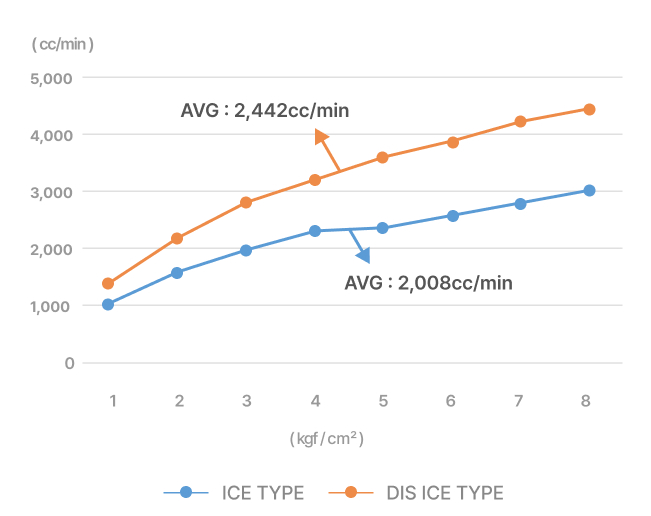

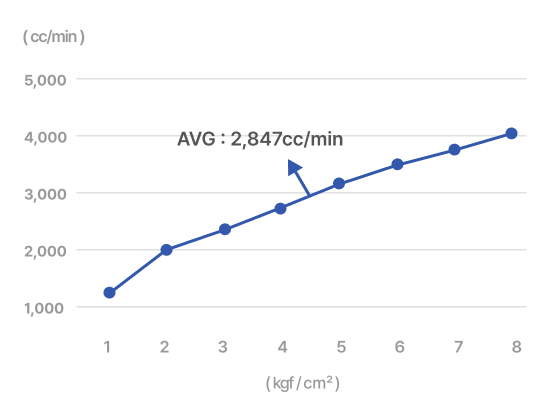

| Flow Rate by Pressure ( cc/min ) |
|
 |
|

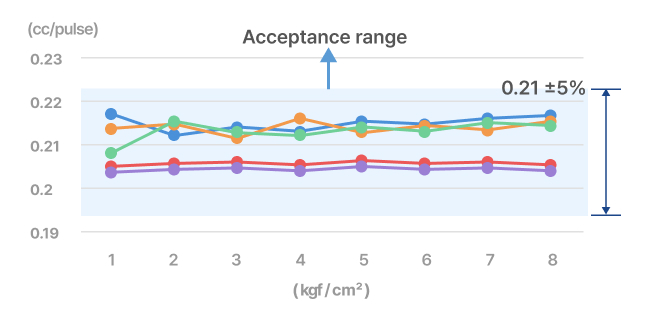

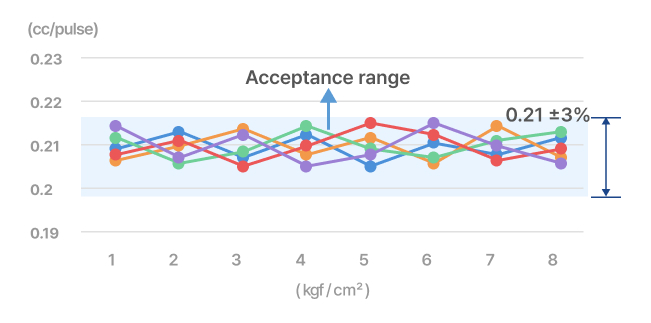

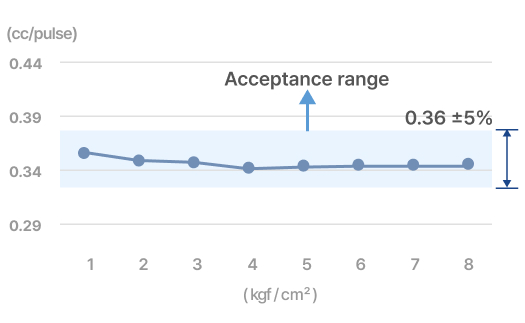

| Measurement Accuracy by Pressure ( cc/pulse ) |
|
|
|
