Guaranteed Perfect Quality / Zero Market Defect Rate / 100% Leak and Performance Testing / Meets 17 Key Inspection Criteria
Precise Flow Control
: Stable flow delivery across diverse applications such as dispensers and ice makers
Enhanced Safety
: Leak testing within the 1.0–8.0 kgf/cm² range ensures long-term reliability
Low Power, High Efficiency
: Power consumption of up to 4.8W (1-way) to 18W (2-way) reduces energy use
Broad Applicability
: Available in 1-way and 2-way models for flexible integration across systems
Technical Certification
: Compliant with international certifications and quality standards for global competitiveness

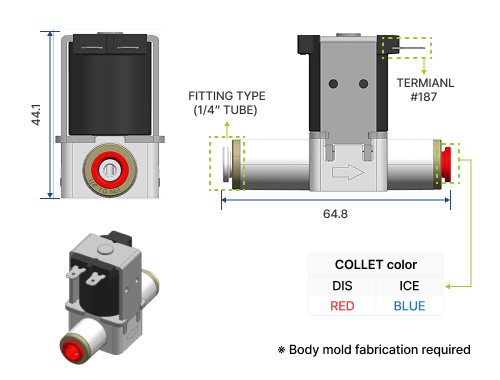

| Category | DC WATER VALVE (1-WAY) | |||
|---|---|---|---|---|
| IMAGE |
|
|
||
| OPERATION | DIS SHUT-OFF | ICE-MAKER | DISPENSER | |
| FLOW RATE | Min 200cc / 7.5 sec | 90 ~ 150cc / 7.5 sec | Min 100cc / 7.5 sec | |
| Operating Pressure | 1.0 - 6.0 kgf/㎠ | 1.0 - 8.0 kgf/㎠ | ||
| Leak-proof Pressure | 0.03 - 6.0 kgf/㎠ | 0.03 - 8.0 kgf/㎠ | ||
| Connection Type | Inlet | FITTING 1/4" | FITTING 1/4" | |
| Outlet | ||||
| Power Specification | 10.8 - 13.2V ( 12V ±10% ) | 10.8 - 13.2V ( 12V ±10% ) | ||
| Frequency | - | - | ||
| Power Consumption | Max 4.8W | Max 4.8W | ||
| Operation Type | Continuous | Continuous | ||
| Certification | LFGB | LFGB | ||
| FLOW SENSOR | - | - | ||

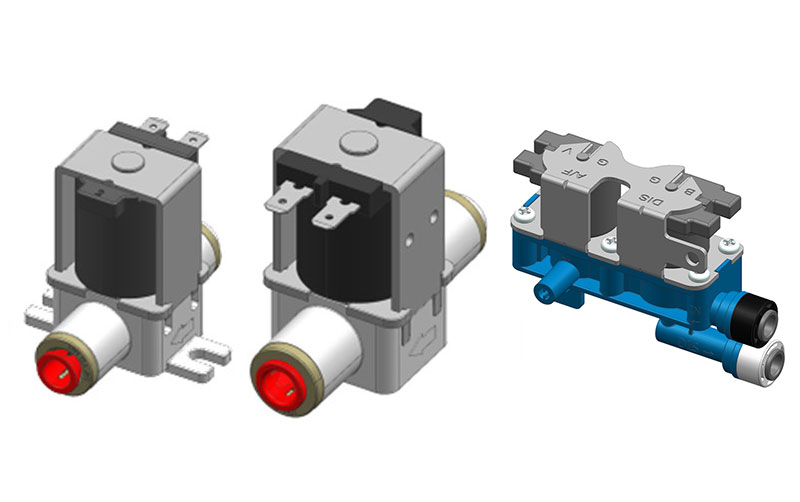

| Category | AUTO FILL DC VALVE (2-WAY) | ||
|---|---|---|---|
| IMAGE |
|
||
| OPERATION | DISPENSER | AUTO FILL | |
| FLOW RATE (cc/7.5s) | 1kgf/㎠ / 7.5 sec, 100cc or more 2kgf/㎠ / 7.5 sec, 100cc or more |
||
| WATER PRESSURE EXTENT | 0.2 - 2.5 kgf/㎠ | ||
| RATED VOLTAGE | 12V ± 10 % | ||
| COIL RESISTANCE | 27 ± 3 Ω | ||
| POWER CONSUMPTION | Max 6W | ||
| DURATION OF USE | intermittent | ||
| TUBE CONNECTION | Fitting Type | ||
| TUBE TYPE | 1/4"tube | ||
| FLOW SENSOR(Apply/Unapplied) | Unapplied | ||
