Guaranteed Perfect Quality / Zero Market Defect Rate / 100% Leak and Performance Testing / Meets 17 Key Inspection Criteria
Precise Flow Control
: Stable flow delivery optimizes ice maker and dispenser performance
Enhanced Safety
: High-pressure leak testing (0.2–8.0 kgf/cm²) ensures long-term reliability
Maximum Energy Efficiency
: 20W power consumption with intermittent operation minimizes energy use
Global Certification
: UL and TUV certified for global reliability
Versatility
: Supports 110–127V / 220–240V, 50/60Hz for use across diverse environments
| Category | PCF | FITTING |
|---|---|---|
| IMAGE |  |
 |
| Description |
|
|

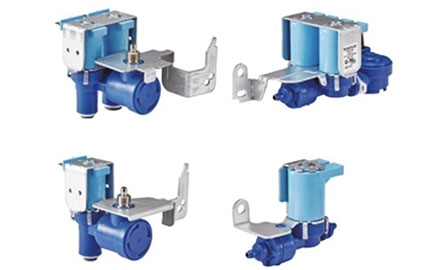

| Category | AC WATER VALVE (2-WAY) | AC WATER VALVE (3-WAY) | ||||
|---|---|---|---|---|---|---|
| IMAGE |
|
|
||||
| OPERATION | ICE-MAKER | DISPENSER | ICE-MAKER _ 1 | ICE-MAKER _ 2 | DISPENSER | |
| FLOW RATE | 100–170 cc / 7.5 sec | Min 100cc / 7.5 sec | 80 - 170cc / 7.5 sec | Min 100cc / 7.5 sec | ||
| Operating Pressure | 1.5 - 8.0 kgf/㎠ | 1.5 - 8.0 kgf/㎠ | ||||
| Leak-proof Pressure | 0.2 - 8.0 kgf/㎠ | 0.2 - 8.0 kgf/㎠ | ||||
| Connection Type | Inlet | PCF 1/4" | PCF, FITTING 1/4" | |||
| Outlet | ||||||
| Power Specification | 110 - 127V / 220 - 240V | 110 - 127V / 220 - 240V | ||||
| Frequency | 50/60 Hz | 50/60 Hz | ||||
| Power Consumption | Max. 20 W | Max. 20 W | ||||
| Operation Type | Intermittent | Intermittent | ||||
| Certification | UL, TUV | UL, TUV | ||||
| FLOW SENSOR | Apply/Unapplied | Apply/Unapplied | ||||
| Category | AC WATER VALVE ( 1-WAY ) | AC WATER VALVE ( 2-WAY 2ICE ) | |||
|---|---|---|---|---|---|
| IMAGE |
|
|
|||
| OPERATION | ICE-MAKER | DISPENSER | ICE-MAKER | ICE-MAKER | |
| FLOW RATE | 110 - 115 ± 15 cc / 6sec | Min 100cc / 7.5 sec | 100–170 cc / 7.5 sec | 100–170 cc / 7.5 sec | |
| Operating Pressure | 1.5 - 8.0 kgf/㎠ | 1.5 - 8.0 kgf/㎠ | |||
| Leak-proof Pressure | 0.2 - 8.0 kgf/㎠ | 0.2 - 8.0 kgf/㎠ | |||
| Connection Type | Inlet | FITTING 1/4" | PCF 1/4" | ||
| Outlet | |||||
| Power Specification | 110 - 127V / 220 - 240V | 110 - 127V / 220 - 240V | |||
| Frequency | 50/60 Hz | 50/60 Hz | |||
| Power Consumption | Max. 20 W | Max. 20 W | |||
| Operation Type | Intermittent | Intermittent | |||
| Certification | UL, TUV | UL, TUV | |||
| FLOW SENSOR | Apply/Unapplied | Apply/Unapplied | |||
